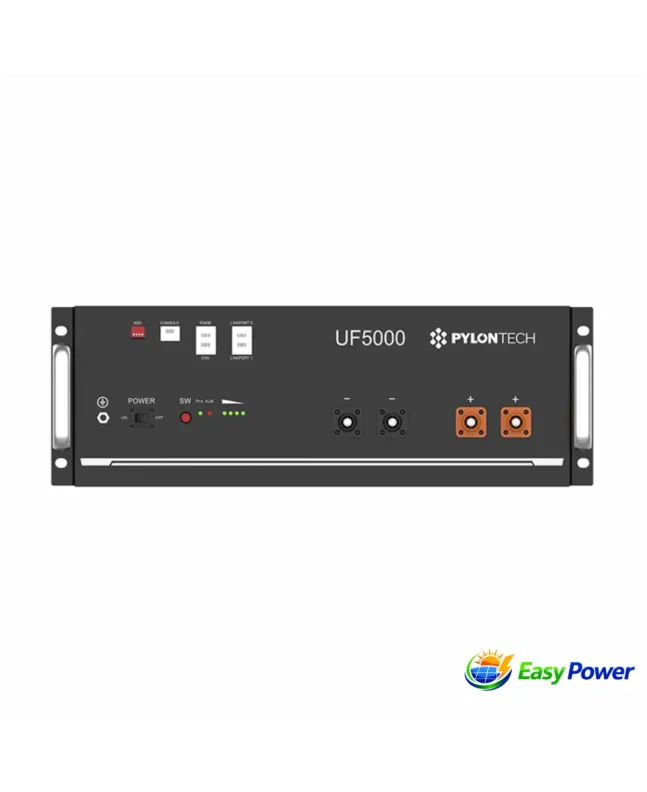

Pylontech UF5000 | 5KWh | Energy Storage Battery | IP20 |
In stock
SKU
pylontech-uf5000-5KWh
Model: UF-5000
Special Price PKR250,000.00 Regular Price PKR265,000.00
Module
The Pylontech UF5000 is a high-performance 5.12kWh lithium battery module designed for residential and commercial solar energy storage systems. With IP20 protection, RS485/CAN communication, and an ultra-long 6000+ cycle life, this modular battery delivers reliable, safe, and scalable power for on-grid and off-grid applications. Built with advanced LiFePO₄ technology, the UF5000 ensures 95% depth of discharge, high efficiency, and long service life, with flexible expansion up to 20 modules per string.
Key Features
- High Capacity 5.12kWh Energy Storage: Delivers powerful and consistent backup energy per module.
- 6000+ Life Cycles: Long-term durability with 15 years design life at 25°C.
- IP20 Rated: Protected against solid objects larger than 12.5mm — ideal for indoor installations.
- RS485/CAN Communication: Advanced connectivity for smart monitoring and system integration.
- Flexible System Expansion: Supports up to 20 modules per single string configuration.
- Wide Operating Temperature Range: Stable performance from -10°C to 55°C (both charge and discharge).
- Compact & Stackable Design: Space-efficient 442×452.6×161mm dimensions with 42kg weight.
| Module | UF5000 |
|---|---|
| Nominal Voltage (VDC) | 51.2 |
| Battery Module Capacity (kWh) | 5.12 |
| Usable Capacity (kWh) | 4.864 |
| Dimension (W*D*H mm) | 442*452.6*161 |
| Weight(kg) | 42 |
| Depth of Discharge | 95% |
| Charge/Discharge (A) | |
| (Normal) | 100 |
| (Max) | 100 |
| (Peak) | 121~200@15sec |
| Communication port | RS485/CAN |
| IP rating | IP20 |
| Single String Quantity (pcs) | 20 |
| Working Temperature/ (°C) Charge | -10~55 |
| Working Temperature/ (°C) Discharge | -10~55 |
| Storage Temperature/ (°C) | -20~60 |
| Humidity (RH) | 5%~95% No condensation |
| Short current/duration time (A) | <2000/1ms |
| Altitude (m) | ≤4000 |
| Design life (@25°C) | 15years |
| Cycle life (@25°C) | >6,000 |
| Certification | IEC62619/UN38.3/RoHS/Reach/WEEE/MSDS |
| Download Official Datasheet | Download PDF |
