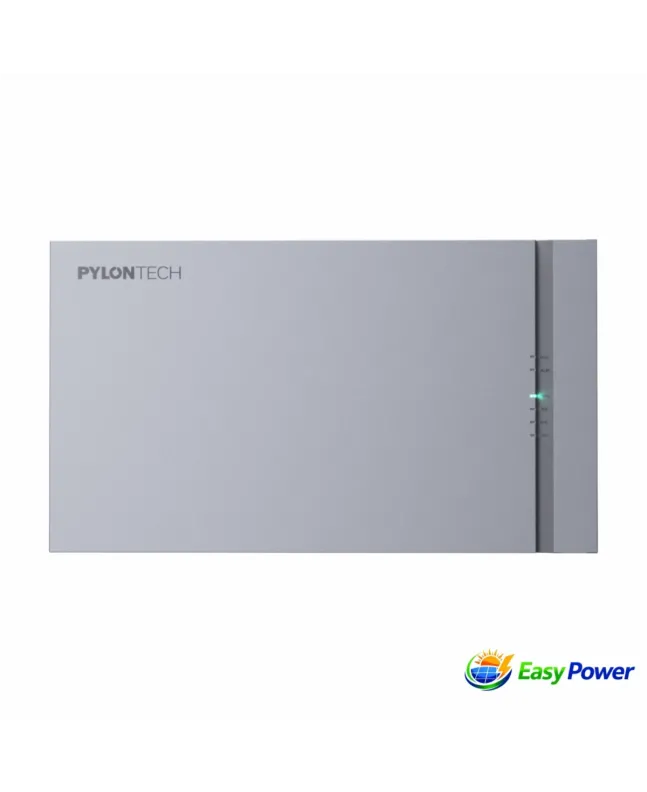

Pylontech Fidus 5kWh Energy Storage Battery | IP20
In stock
SKU
pylontech-fidus-5kWh
Model: FB-L-5.12-PK
Special Price PKR265,000.00 Regular Price PKR285,000.00
Module
FB-L-5.12-PK
Fidus-Battery
The Pylontech FB-L-5.12-PK Fidus Battery is a high-performance 5.12kWh lithium battery module designed for residential and commercial solar energy storage systems. With IP20 protection, RS485/CAN communication, and an ultra-long 8000+ cycle life, this modular battery delivers reliable, safe, and scalable power for on-grid and off-grid applications. Built with advanced LiFePO₄ technology, the FB-L-5.12-PK ensures 97% depth of discharge, high efficiency, and long service life, with C5-M anti-corrosion protection for enhanced durability.
Key Features
- High Capacity 5.12kWh Energy Storage: Delivers 4.97kWh usable capacity with 97% depth of discharge.
- 8000+ Life Cycles: Long-term durability with 15 years design life at 25°C.
- IP20 Rated with C5-M Anti-corrosion: Enhanced protection for indoor installations in challenging environments.
- RS485/CAN Communication: Advanced connectivity for smart monitoring and system integration.
- Multi-Group Capability: Supports up to 6 parallel groups with 20 modules per string (19 pcs for multiple strings).
- Wide Operating Temperature Range: Stable performance from -10°C to 55°C for both charge and discharge.
- Compact Design: Space-efficient 638×137×370mm dimensions with 45kg weight.
| Module | FB-L-5.12-PK |
|---|---|
| Nominal Voltage (VDC) | 51.2V |
| Battery Module Capacity (kWh) | 5.12 |
| Usable Capacity (kWh) | 4.97 |
| Dimension (W*D*H mm) | 638*137*370 |
| Weight (kg) | 45 |
| Depth of Discharge | 97% |
| Charge/Discharge (A) | |
| (Normal) | 100 |
| (Max) | 100 |
| (Peak) | 121~200@15s |
| Communication port | RS485/CAN |
| IP rating | IP20 |
| Anti-corrosion | C5-M |
| Multi-Group | 6 |
| Single String Quantity (pcs) | 20* |
| Working Temperature (°C) Charge | -10~55* |
| Working Temperature (°C) Discharge | -10~55* |
| Storage Temperature (°C) | -20~60 |
| Humidity (RH) | 5%~95% No condensation |
| Short current/duration time (A) | <1000/ms |
| Altitude (m) | ≤4000 |
| Design life @25°C | 15years |
| Cycle life @25°C | >8000 |
| Certification | IEC62619/UN38.3/RoHS/Reach/WEEE/EMC/CE/IEC62040 |
| Download Official Datasheet | Download PDF |
