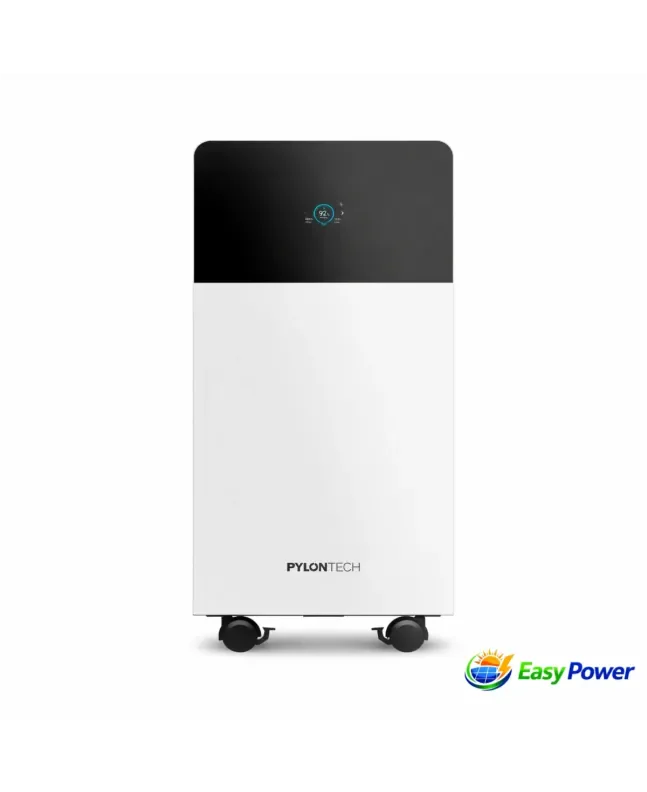

Pylontech Fidus Plus 16kWh Energy Storage Battery | IP20 | Built in WiFi | Display Screen
In stock
SKU
Pylontech-Fidus-Plus-16kWh
Model: FB-L-16-PK
PKR650,000.00
Pylontech Fidus Plus Battery 16kwh
The Pylontech Fidus Plus 16kWh is a high-performance lithium battery designed for residential, commercial, and industrial solar energy storage systems. With IP20 protection, built-in WiFi and Bluetooth, and an ultra-long 8000+ cycle life, this battery delivers reliable, safe, and scalable power for on-grid and off-grid applications. Built with advanced LiFePO₄ technology, the Fidus Plus ensures 100% depth of discharge, high efficiency, and long service life, even in harsh environmental conditions.
Key Features
- High Capacity 16kWh Energy Storage: Delivers powerful and consistent backup energy for homes and businesses.
- 8000+ Life Cycles: Long-term durability with up to 15 years design life at 25°C.
- IP20 Rated: Protected against solid objects larger than 12.5mm — ideal for indoor installations.
- Built-in WiFi & Bluetooth: Smart monitoring with display screen for real-time battery status.
- Flexible System Expansion: Supports up to 20 batteries per group and 6 parallel strings.
- Wide Operating Temperature Range: Stable performance from -20°C to 60°C (discharge) and 0°C to 55°C (charge).
| Model | FB-L-16-PK |
|---|---|
| Nominal Voltage (Vdc) | 51.2 |
| Nominal Capacity (Wh) | 16076 |
| Usable Capacity (Wh)* | 16076 |
| Depth of Discharge (%)* | 100 |
| Dimensions (mm) | 435(W)*240(D)*900(H) |
| Weight (Kg) | 130kg |
| Discharge Voltage (Vdc) | 40 ~ 56.8 |
| Charge Voltage (Vdc) | 56 ~ 56.8 |
| Maximum Continuous Charge/Discharge Current (A) | 188/200 |
| Peak Charge/Discharge Current (A) | 300A@15s |
| Communication | CAN、RS485 |
| Configuration (maximum quantity in one battery group)* | 20 |
| Configuration (maximum strings)** | 6 |
| Working Temperature (°C)*** charging: |
0~55 |
| Working Temperature (°C)*** discharging: |
-20~60 |
| Storage Temperature (°C) | -20 ~ 60 |
| Cooling Type | Natural |
| Protective Class | I |
| IP Rating of Enclosure | IP20 |
| Anti-corrosion | C5-M |
| Humidity(%, RH, No Condensation) | 5 ~ 95 |
| Altitude(m) | ≤4000 |
| Certifications | IEC62619、IEC63056、UN38.3、EMC/CE |
| Design Life (year) (25°C /77°F) | 15 |
| Cycle Life (25°C /77°F) U* | 8000 |
| Interaction | Display screen、Bluetooth and WIFI |
| Download Official Datasheet | Download PDF |
EN-PK-251030
Pylontech Fidus Plus Battery 16kwh
| Model | FB-L-16-PK |
|---|---|
| Nominal Voltage (Vdc) | 51.2 |
| Nominal Capacity (Wh) | 16076 |
| Usable Capacity (Wh)* | 16076 |
| Depth of Discharge (%)* | 100 |
| Dimensions (mm) | 435(W)*240(D)*900(H) |
| Weight (Kg) | 130kg |
| Discharge Voltage (Vdc) | 40 ~ 56.8 |
| Charge Voltage (Vdc) | 56 ~ 56.8 |
| Maximum Continuous Charge/Discharge Current (A) | 188/200 |
| Peak Charge/Discharge Current (A) | 300A@15s |
| Communication | CAN、RS485 |
| Configuration (maximum quantity in one battery group)* | 20 |
| Configuration (maximum strings)** | 6 |
| Working Temperature (°C)*** charging: |
0~55 |
| Working Temperature (°C)*** discharging: |
-20~60 |
| Storage Temperature (°C) | -20 ~ 60 |
| Cooling Type | Natural |
| Protective Class | I |
| IP Rating of Enclosure | IP20 |
| Anti-corrosion | C5-M |
| Humidity(%, RH, No Condensation) | 5 ~ 95 |
| Altitude(m) | ≤4000 |
| Certifications | IEC62619、IEC63056、UN38.3、EMC/CE |
| Design Life (year) (25°C /77°F) | 15 |
| Cycle Life (25°C /77°F) U* | 8000 |
| Interaction | Display screen、Bluetooth and WIFI |
| Download Official Datasheet | Download PDF |
EN-PK-251030
