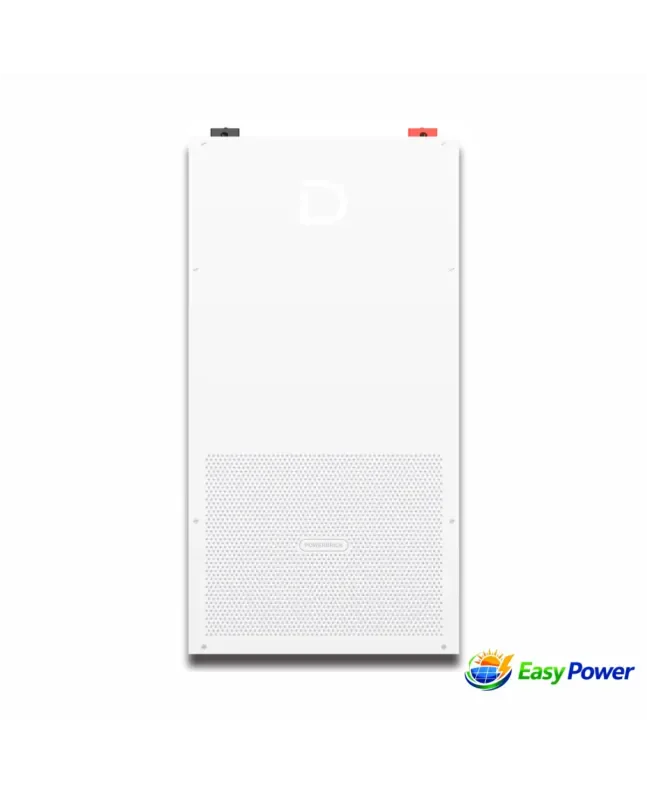

Dyness Power Brick 14.336 KWh Energy Storage Battery | IP20
In stock
SKU
dyness-power-brick
Model: PowerBrick 14.336KWh
Special Price PKR625,000.00 Regular Price PKR650,000.00
Dyness PowerBrick 14.336KWh Storage Battery
The Dyness PowerBrick is a high-performance 14.336kWh lithium battery designed for residential and commercial solar energy storage systems. With IP20 protection, built-in WiFi module with APP OTA functionality, and an ultra-long 8000+ cycle life, this wall-mounted battery delivers reliable, safe, and scalable power for on-grid and off-grid applications. Built with advanced LiFePO₄ technology, the PowerBrick ensures 95% depth of discharge, high efficiency, and long service life with built-in aerosol fire extinguisher for enhanced safety.
Key Features
- High Capacity 14.336kWh Energy Storage: Delivers powerful and consistent backup energy for homes and businesses.
- 8000+ Life Cycles: Long-term durability with 10 years warranty at 25°C, 95% DoD.
- Built-in WiFi Module: Smart monitoring with APP OTA function for remote updates and real-time battery status.
- Advanced Safety Features: Built-in aerosol fire extinguisher system for maximum protection.
- Massive Scalability: Supports up to 50 parallel modules for large-scale installations.
- Wide Operating Temperature Range: Charge from 0°C to 55°C, discharge from -20°C to 55°C.
- Wall-Mounted Design: Space-efficient 435×233×857mm dimensions with optional wall-mounted bracket.
- Universal Compatibility: Works with major inverter brands including Solis, Deye, Luxpower, Voltronic, Hoymiles, Growatt, Goodwe, SMA, Victron, and more.
| Model | PowerBrick |
|---|---|
| Battery Type | LiFePO₄ |
| Nominal Battery Energy | 14.336kWh |
| Nominal Voltage/Capacity | 51.2V/280Ah |
| Recommended Charge/Discharge Current | 140A (0.5C) |
| Max. Charge Current | 200A(0.7C) |
| Max. Discharge Current | 200A(0.7C) |
| Peak Discharge Current | 300A (2mins, 25°C) |
| Depth of Discharge | 95% |
| Communication | CAN/RS485 |
| Cycle Life * | >8000 cycles / 10 Years |
| Protection Level | IP20 |
| Net Weight | 114kg |
| Dimension[W*D*H] | 435*233*857mm (No wall-mounted bracket) |
| Regulating wheel（4pcs） | 1kg.80/80/80mm(Optional) |
| Top cover | 2kg.422/232/60mm(Optional) |
| Maximum Parallel Modules | 50 |
| Charging Temp. Range | 0~55°C |
| Discharging Temp. Range | -20~55°C |
| WIFI Module | Built-in WIFI module; APP OTA function |
| Fire Protection System | Built-in aerosol fire extinguisher |
| Certification & Safety Standard | UN38.3/CE-EMC/IEC62619/GOST-R |
| Compatible Inverters | Solis/Deye/Luxpower/Voltronic/Hoymiles/Growatt/Goodwe/SMA/Victron/Ingeteam/Delios/SAJ/APS etc. |
| Download Official Datasheet | Download PDF |
